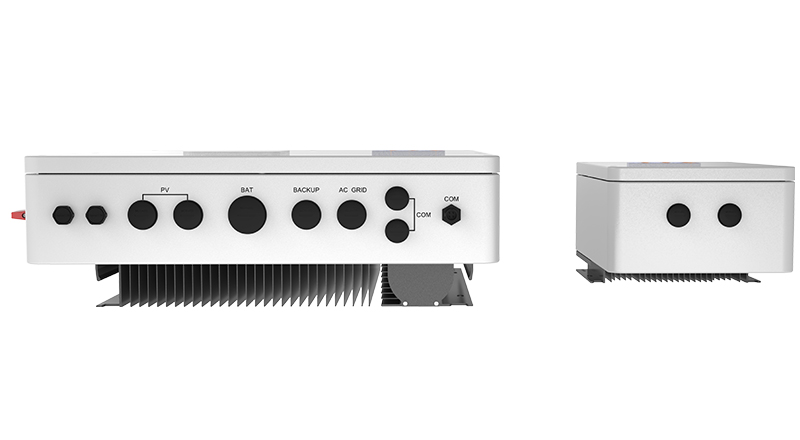

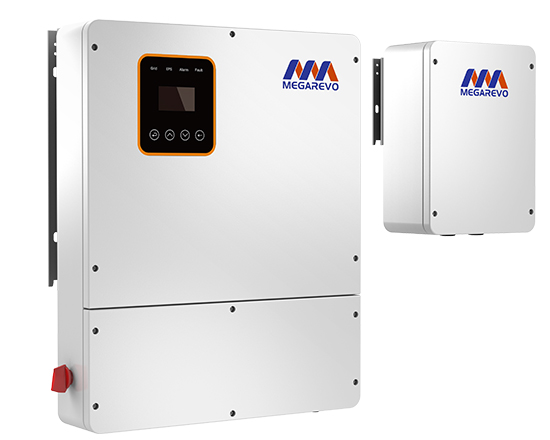

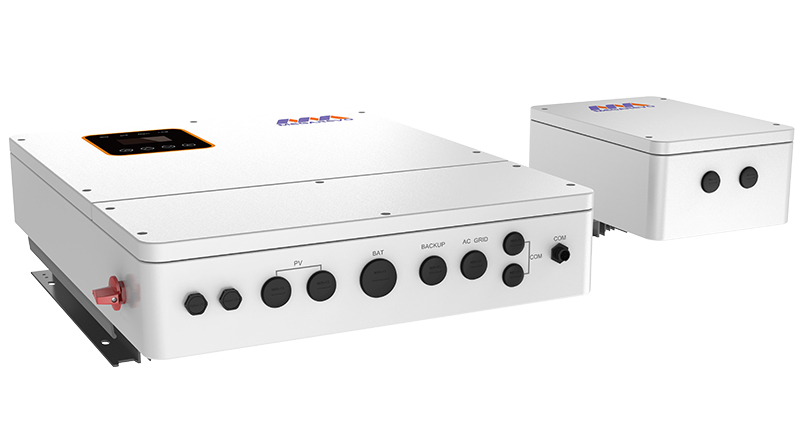

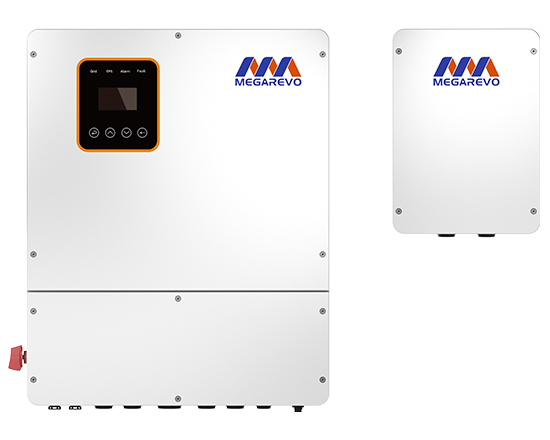

The H1 Series High-Voltage hybrid inverter consists of an inverter and transformer designed for the American market. This split-phase inverter meets the battery voltage range of 85~400V and covers a power range of 6-12kW. Accordingly, it’s compatible with a wide range of mainstream batteries and is suitable for large-capacity home energy storage systems in North America.

American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
American ESS split- phase inverter (battery voltage>80V)
Product Highlights
Safe and reliable
Passed UL 1741:2021, IEEE 1547.1, UL1699B test certification; ①With over-voltage, over-current, over-temperature protection, compatible with anti-zero export function;
Flexible and efficient
Support full power charge and discharge, better charge and discharge efficiency;
Support 100% unbalanced load capacity;
Intelligent and friendly
Customizable I / O interface, more flexible application;
Support remote monitoring, remote upgrade and automatic battery management;
Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefit

keeping critical load operation in power of

Support 7*24 remote service

Technical specificationR6KH1NAR8KH1NAR10KH1NAR12KH1NA
Input (PV)
Max. power(kW)7.810.41315.6
Max. DC voltage(V)500
MPPT voltage range(V)125~500
Max.Input current of single MPPT(A)12
MPPT tracker/strings4/1
AC output
Rated output power(kVA)681012
Max. apparent Power (kVA)6.68.81112
Max. output current(A)27.536.745.850
Grid voltage/range(V)240/211~264
Frequency (Hz)50 /60
PF0.8lagging-0.8leading
THDi<3%
AC output topologySplit phase、single phase
Battery
Battery voltage range(V)85~400
Max. charging voltage(V)400
Full battery voltage(V)85110140160
Max. charge/discharge current(A)80/80
Battery typeLithium /Lead-acid
Communication interfaceCAN,RS485
EPS output
Rated power (kVA)681012
Rated output voltage(V)220-240 /110-120
Rated frequency(Hz)50/60
Automatic switching time (ms)<20
THDu<2%
Overload capacity110%,30S/120%,10S/150%,0.02S
General data
DC Max. efficiency≥98.2%
CEC efficiency≥97.2%
Ingress protectionIP65/NEMA 3R
Noise emission(dB)<25<25<29<29
Operation temperature(℃)-25~60
CoolingNatural
Relative humidity0 ~95%(non-condensing)
Operation altitude (m)2,000 (>2,000 Derating)
Weight(kg)34
Dimensions W * D * H (mm)560* 220* 680
Self-consumption(W)<20
Display and communication
DisplayLCD
Interface:RS485/Wifi/4G/CANYes/ Opt/ Opt/ Yes
Safety standardUL1741SA all options, UL1699B, CSA 22.2
EMCFCC Part 15, Class B
On-gridIEEE 1547, Rule 21, Cpuc Rule 21, SRD V2.0 UL1741SA, UL1741SB
