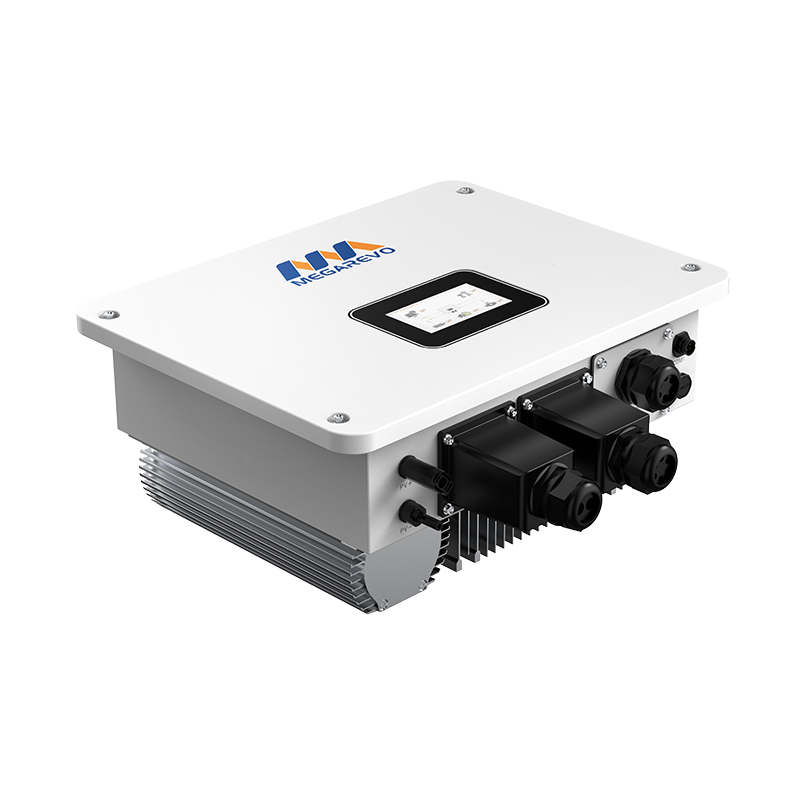

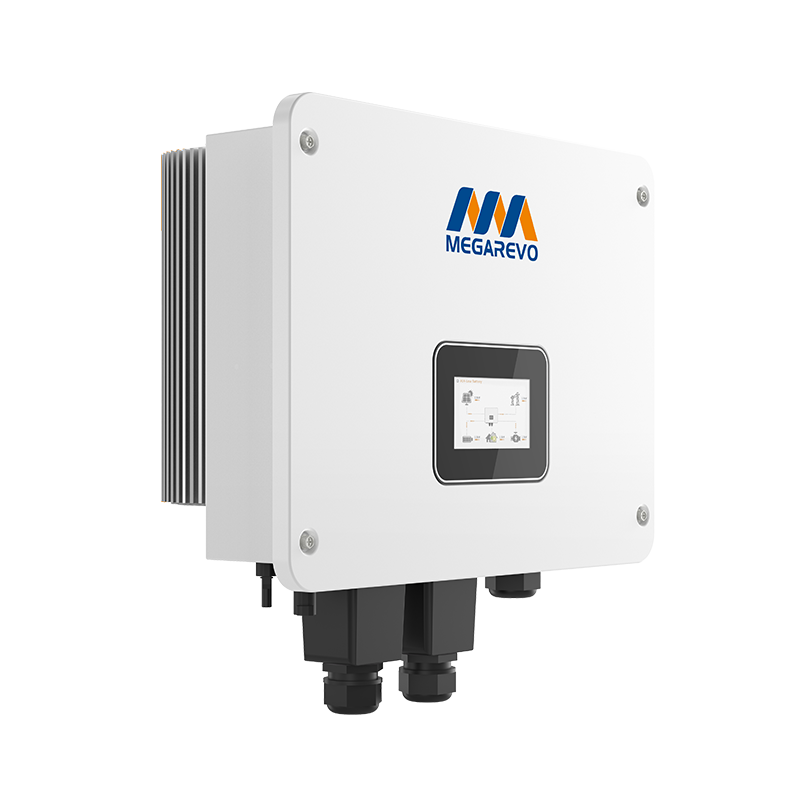

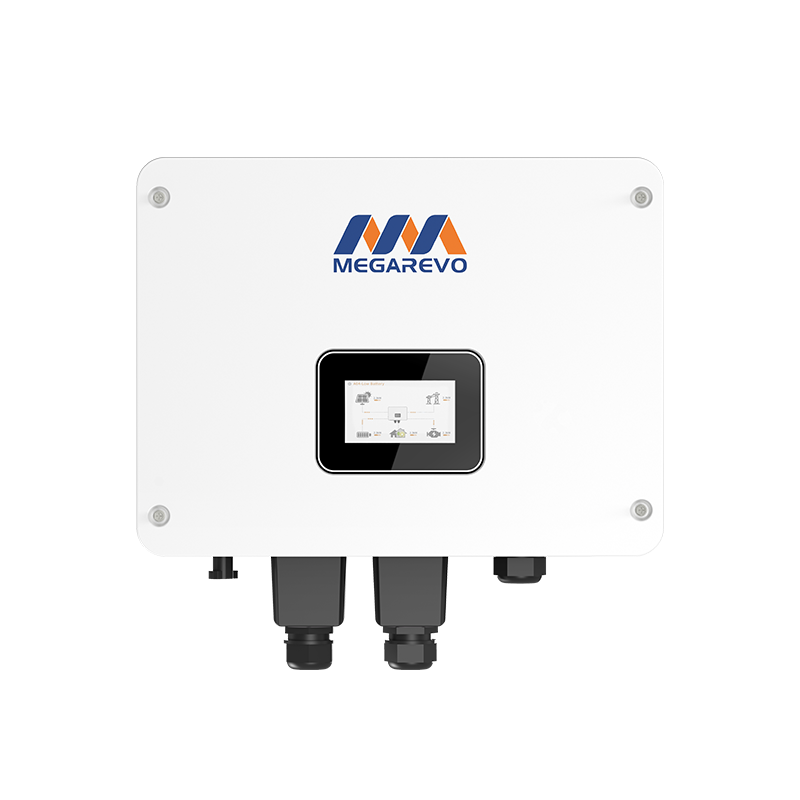

The Megarevo O6KL1D off grid inverter combining strong load and grid adaptability, with support for up to 1.5×PV input power and whisper quiet operation. The intuitive large touchscreen and rugged IP65 housing make it easy to monitor and operate in diverse environments. Additionally it supports three-phase operation and has the ability to parallel up to four units, providing reliable scalability for growing power needs.
By integrating PV, diesel generators, batteries, and loads into a single system, the grid off inverter reduces system complexity and significantly lowers installation and commissioning costs.
The off grid inverters prioritize PV and battery power which reduces reliance on diesel generators and lowers fossil fuel consumption, delivering more environmentally friendly energy storage solutions.
With multiple energy sources and flexible operating modes, the 8 volt off grid inverter automatically balances the power supply to ensure a continuous and stable power supply.
With scalable architecture and parallel operation capability, our off grid inverters allow PV capacity to be easily expanded as energy demand grows, making PV expansion more convenient in the future
| Model | O5KL1D | O6KL1D |
| PV input data | ||
| Max. input power (kW) | 7.5 | 9 |
| MPPT tracker/strings | 1/1 | |
| Max. PV input voltage (V) | 500 | |
| MPPT voltage range (V) | 100~430 | |
| Max. input current (A) | 32 | |
| Short circuit current (A) | 37 | |
| Battery | ||
| Rated voltage (V) | 48 | |
| Battery voltage range (V) | 40~58 | |
| Max. charging/discharging current (A) | 100/100 | 120/120 |
| Battery type | Lithium/Lead-acid | |
| Battery charging strategy | Self-adaption to BMS | |
| Off-grid output | ||
| Rated output power (kW) | 5 | 6 |
| Rated output voltage (V) | 230 | |
| Output frequency (Hz) | 50/60 | |
| Max. apparent output current (A) | 21.7 | 26 |
| Max. output over current (A) | 26 | 31.2 |
| Power factor | 1 (0.8 leading~0.8 lagging) | |
| THDu | <3% | |
| Switching time (ms) | 10 | |
| Grid input | ||
| Rated input voltage (V) | 230 | |
| Grid voltage input range (V) | 176~270 | |
| Rated grid frequency (Hz) | 50/60 | |
| THDi | <3% | |
| Type of grid connection | L+N+PE | |
| AC input(On-GEN) | ||
| Max. input power (kW) | 5 | 6 |
| Max. input current (A) | 21.7 | 26 |
| Protection | ||
| Island protection | Yes | |
| Insulation resistor detection | Yes | |
| PV input reverse protection | Yes | |
| Output over current protection | Yes | |
| Output short protection | Yes | |
| Output over voltage protection | Yes | |
| Output under voltage protection | Yes | |
| AC/DC surge protection | Yes | |
| General data | ||
| Max. efficiency | 96% | |
| Operating temperature range (℃) | -25 ~+60 | |
| Relative humidity | 5%-95% | |
| Operating altitude (m) | 0-2,000 | |
| Ingress protection | IP65 | |
| Weight (kg) | 17 | |
| Dimensions W*D*H (mm) | 455*200*447 | |
| Cooling | Natural convection | |
| Noise emission (dB) | <35 | |
| Display | Color screen | |
Communication With RS485/Wifi/GPRS/CAN/DRM | Possess/Optional/Optional/Possess/Possess | |
| Topology | Non-isolated | |
