Features C4M anti-corrosion and IP54 protection, a split design compatible with lithium and lead-acid batteries, seamless BMS communication,
optional air-cooled/liquid-cooled battery systems supporting up to 8 strings (0.5C/1C), and flexible UPS capacity and AC auxiliary power configuration.
Integrated design for easy transportation and installation
Reduce system operating costs
Can be used for a variety of backup purposes
Turnkey projects
Support 7*24 remote service
| Model | ESSF0030A | ESSF0030B | ESSF0050A | ESSF0050B | ESSF0100A | ESSF0150A |
| Converter (AC) | ||||||
| Converter model | MEGA0030TS | MPS0030 | MEGA0050TS | MPS0050 | MEGA0100TS | MEGA0150TS |
| Rated power (kW) | 30 | 50 | 100 | 150 | ||
| Active power (kW) | 30 | 50 | 100 | 150 | ||
| Rated voltage (V) | 400 | |||||
| Rated current (A) | 43 | 72 | 144 | 216 | ||
| Voltage range (V) | 320-460 | |||||
| Rated frequency (Hz) | 50/60 | |||||
| Frequency range (Hz) | 45-55/55-65 | |||||
| THDi (on-grid) | ＜3% | |||||
| THDu (off-grid) | ≤1% linear; ≤5% nonlinear | |||||
| Power factor | 1leading~1lagging(settable) | |||||
| Overload capability | 110% long-term | |||||
| Grid type | 3-phase 4-wire + ground (3W+N+PE) | |||||
| Isolation transformer | Yes | |||||
| On / off-grid switching | Support | |||||
| MPPT | ||||||
| Max. PV input voltage (V) | / | 1,000 | / | 1,000 | / | |
| Max. PV power (kW) | / | 36/72 | / | 60/120 | / | |
| MPPT operating voltage range (V) | / | 250~850 | / | 250~850 | / | |
| Buck-boost mode | / | Support | / | Support | / | |
| General | ||||||

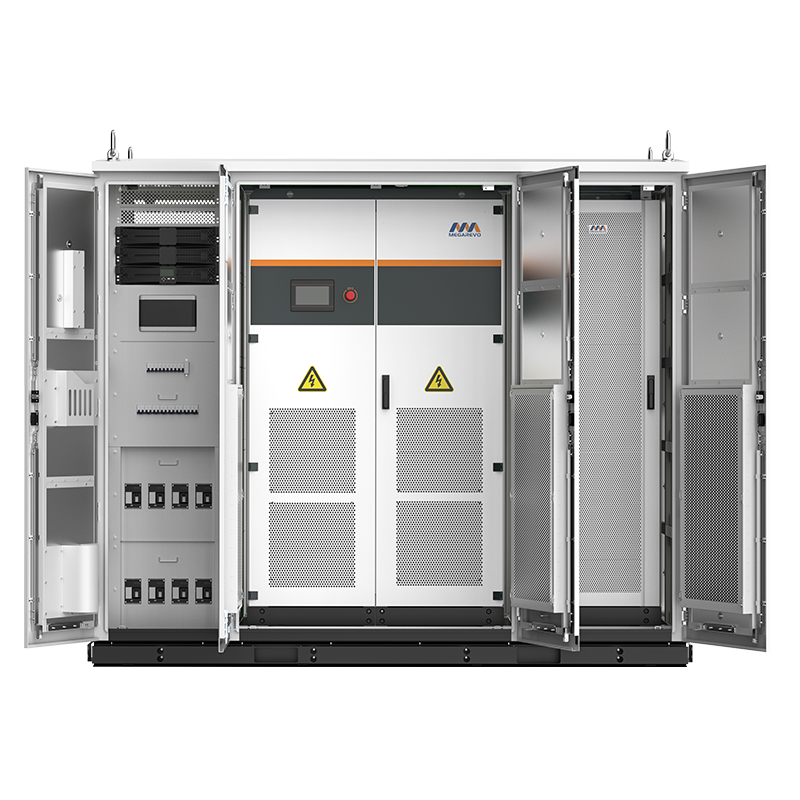

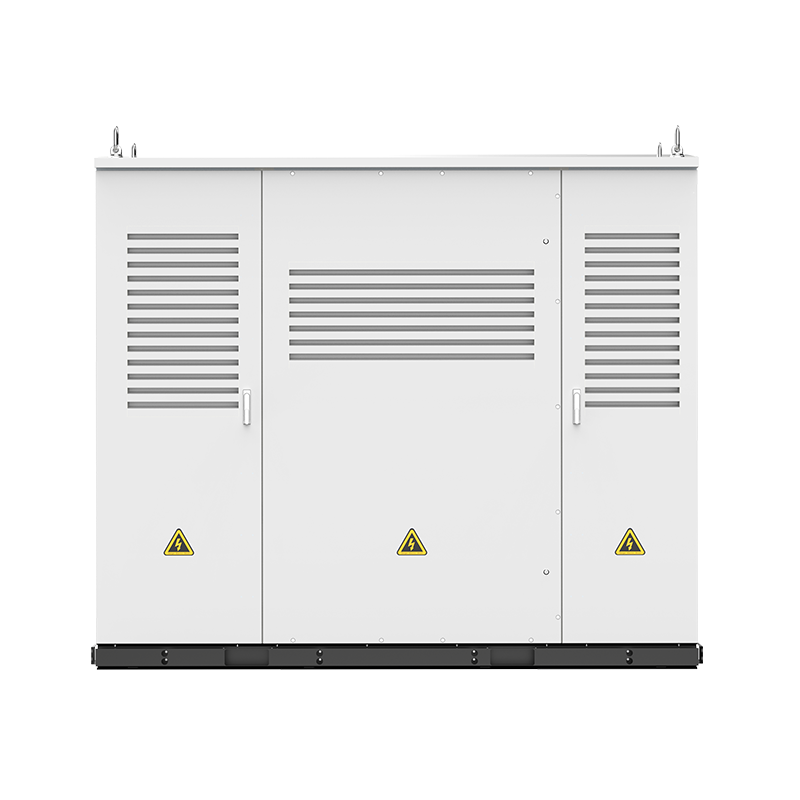

| Structure type | Two cabin outdoor cabinet | |||||
| Dimensions W *D *H (mm) | 1,600*1,370*2,385 | |||||
| Net weight(Includes converter)(kg) | ≈1,690 | ≈1,720 | ≈1,800 | ≈1,830 | ≈2,090 | ≈2,190 |
| Operating temperature (℃) | 0 ～ +45 | |||||
| Relative humidity | 0 ~95%（non-condensing） | |||||
| Ingress protection | IP54 | |||||
| Anti-corrosion grade | C4M | |||||
| Noise emission (dB) | <75 | |||||
| Max. operating altitude (m) | 5,000m(>3,000 derating) | |||||
| Cooling | Air cooling | |||||
| Display | 7” device display +10” EMS display +10” BMS display (configurable) | |||||
| EMS communication | RS485, TCP/IP | |||||
| Model | ESSF0100B | ESSF0150B | ESSF0250A | ESSF0250B |
| Converter (AC) | ||||
| Converter model | MPS0100 | MPS0150 | MEGA0250TS | MPS0250 |
| Rated power (kW) | 100 | 150 | 250 | |
| Active power (kW) | 100 | 150 | 250 | |
| Rated voltage (V) | 400 | |||
| Rated current (A) | 144 | 216 | 361 | |
| Voltage range (V) | 320-460 | |||
| Rated frequency (Hz) | 50/60 | |||
| Frequency range (Hz) | 45-55 / 55-65 | |||
| THDi (on-grid) | ＜3% | |||
| THDu (off-grid) | ≤1% linear; ≤5% nonlinear | |||
| Power factor | 1leading~1lagging(settable) | |||
| Overload capability | 110% long-term | |||
| Grid type | 3-phase 4-wire + ground (3W+N+PE) | |||
| Isolation transformer | Yes | |||
| On / off-grid switching | Support | |||
| MPPT | ||||
| Max. PV input voltage (V) | 1,000 | 1,000 | / | 1,000 |
| Max. PV power (kW) | 120/180/240 | 120/180/240 | / | 300/360 |
| MPPT operating voltage range (V) | 250~850 | 250~850 | / | 250~850 |
| Buck-boost mode | Support | Support | / | Support |
| General | ||||

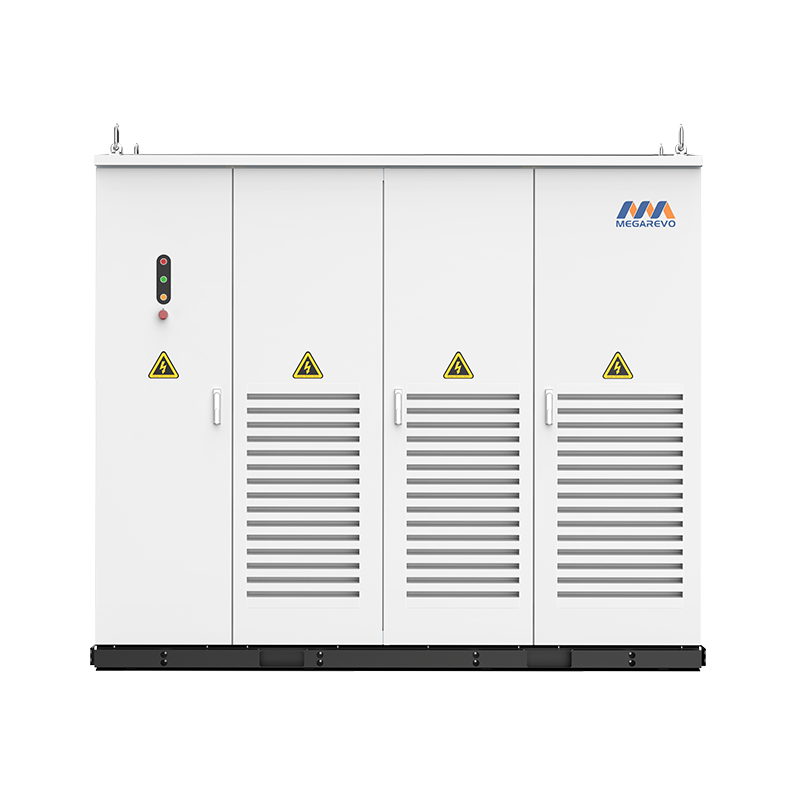

| Structure type | Two cabin outdoor cabinet | Three cabin outdoor cabinet | ||
| Dimensions W*D*H (mm) | 2,000*1,370*2,385 | 2,735*1,370*2,385 | ||
| Net weight(Includes converter) (kg) | ≈2,150 | ≈2,250 | ≈2,650 | ≈3,250 |
| Operating temperature (℃) | 0 ～ +45 | |||
| Relative humidity | 0 ~95%（non-condensing） | |||
| Ingress protection | IP54 | |||
| Anti-corrosion grade | C4M | |||
| Noise emission (dB) | <75 | |||
| Max. operating altitude (m) | 5,000(>3,000 derating) | |||
| Cooling | Air cooling | |||
| Display | 7” device display +10” EMS display +10” BMS display (configurable) | |||
| EMS communication | RS485, TCP/IP | |||
